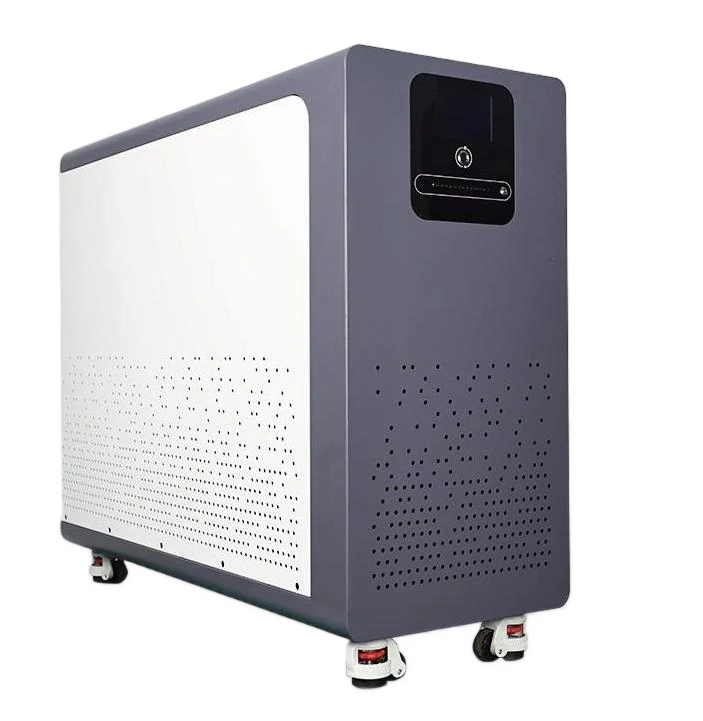

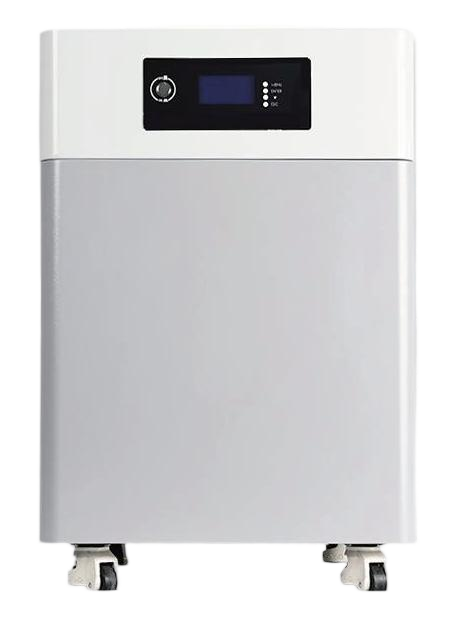

Portable energy storage battery
Our Mobile Energy Storage Battery is designed for flexible energy storage scenarios. Equipped with lockable wheels at the bottom, it can be easily moved and transported, perfectly suitable for home emergency, outdoor work, RV camping, commercial and industrial backup power and other scenarios. Three appearance options are available: Iron Box Model (16S1P/16S2P configurations) for durability and strong protection; White-Gray Model (16S1P/16S2P) with minimalist and elegant design, suitable for various home and commercial scenarios; Aluminum Alloy Model (16S1P) for lightweight design and premium texture, meeting different usage and aesthetic needs.
All models adopt EVE brand new Grade A LiFePO₄ cells, with excellent cell consistency and sufficient safety margin. It supports over 8000 charge-discharge cycles with minimal long-term degradation, ensuring stable performance for more than 10 years. It comes with a 3-5 year official warranty and remote technical support for worry-free after-sales service. Built-in BMS provides full-link protection against overcurrent, overvoltage, overcharge, overdischarge, short circuit and other risks. Equipped with efficient forced air cooling to prevent thermal runaway. Supports CAN/RS232/RS485 multi-protocol communication, compatible with mainstream residential and commercial energy storage inverters for plug-and-play networking. LCD touch screen displays real-time data such as SOC, voltage and current for clear status monitoring. Full capacity range from 300Ah to 1000Ah, with maximum output power up to 50.6kWh, meeting all energy storage needs.
ANCH48V-MC (Iron Box Model)
● Grade A EVE LiFePO₄ cells, 16S1P, excellent consistency
● Over 8000 cycles, low degradation, 10+ years service life
● 3–5 year official warranty, lifetime remote technical support
● Full BMS protection: overcurrent, overvoltage, overcharge, overdischarge, short circuit
● Efficient air cooling, stable temperature, safe operation
● Ring terminals for secure, anti-loose wiring
● Supports CAN / RS232 / RS485 communication
● Compatible with mainstream inverters, plug-and-play
● LCD touch display, real-time voltage / current / SOC monitoring
ITEM | CONDITION | PARAMETER | ||
Cell Type | LiFePo4 | |||
Composition | 16S1P | |||
Instantaneous Discharge Current | 220A/10S 320A/10S | |||
Display | LCD Display Screen/Touch Screen Display Screen | |||
Communication Interface | CAN/RS232/RS485 | |||
Cooling Method | Forcedalrcooling | |||
Transport Classification | UN38.3/MSDS/Sea/Air | |||
Battery Protection Function | Overcurrent, Overvoltage, Overcharging, Overdis charge, Shortcircuit, etc | |||
Nominal Capacity | Standard Charge/Discharge | 300.0Ah | 314.0Ah | 350.0Ah |
Nominal Voltage | Standard Voltage | 51.2V | 51.2V | 51.2V |
Charge Voltage | / | 58.4V | 58.4V | 58.4V |
Max Continuous Charging Current | 25+3°C | 100.0A | 100.0A | 100.0A |
Minimum Discharge Voltage | Constant Current Terminal Voltage (Cut-off) | 42V | 42V | 42V |
Max Continuous Discharging Current | 25+3°C | 200.0A | 200.0A | 200.0A |
MAX Output Power Rate | 25+3°C | 15360Wh | 16076Wh | 17920Wh |
Battery Pack Size | / | 690*300*870mm | 690*300*870mm | 690*300*870mm |
Package Size | / | 690*300*870mm | 758*390*1045mm | 758*390*1045mm |
Net Weight of Battery Pack | / | 125kg | 127kg | 127kg |
Gross Weight of Battery Pack | / | 142kg | 144kg | 144kg |
Operating Temperature | Charge | 0°C~60°C | ||
Discharge | -20°C~60°C | |||
Storage Temperature | One Month | -20°C~45°C | ||
Three Months | -20°C~35°C | |||
Six Months | -20°C~25°C | |||
Power Cable Terminal | / | Ring Terminal | ||
ITEM | CONDITION | PARAMETER | |||
Cell Type | LiFePo4 | ||||
Composition | 16S2P | ||||
Instantaneous Discharge Current | 220A/10S 320A/10S | ||||
Display | LCD Display Screen/Touch Screen Display Screen | ||||
Communication Interface | CAN/RS232/RS485 | ||||
Cooling Method | Forcedalrcooling | ||||
Transport Classification | UN38.3/MSDS/Sea/Air | ||||
Battery Protection Function | Overcurrent, Overvoltage, Overcharging, Overdis charge, Shortcircuit, etc | ||||
Nominal Capacity | Standard Charge/Discharge | 400.0Ah | 460.0Ah | 600.0Ah | 628.0Ah |
Nominal Voltage | Standard Voltage | 51.2V | 51.2V | 51.2V | 51.2V |
Charge Voltage | / | 58.4V | 58.4V | 58.4V | 58.4V |
Max Continuous Charging Current | 25+3°C | 100.0A | 100.0A | 150.0A | 150.0A |
Minimum Discharge Voltage | Constant Current Terminal Voltage (Cut-off) | 42V | 42V | 42V | 42V |
Max Continuous Discharging Current | 25+3°C | 200.0A | 200.0A | 300.0A | 300.0A |
MAX Output Power Rate | 25+3°C | 20480Wh | 23552Wh | 30720Wh | 32154Wh |
Battery Pack Size | / | 795*300*870mm | 795*300*870mm | 830*440*940mm | 830*440*940mm |
Package Size | / | 850*358*1045mm | 850*358*1045mm | 780*500*1110mm | 780*500*1110mm |
Net Weight of Battery Pack | / | 180kg | 182kg | 235kg | 237kg |
Gross Weight of Battery Pack | / | 201kg | 203kg | 260kg | 262kg |
Operating Temperature | Charge | 0°C~60°C | |||
Discharge | -20°C~60°C | ||||
Storage Temperature | One Month | -20°C~45°C | |||
Three Months | -20°C~35°C | ||||
Six Months | -20°C~25°C | ||||
Power Cable Terminal | / | Ring Terminal | |||
ITEM | CONDITION | PARAMETER | |
Cell Type | LiFePo4 | ||
Composition | 16S3P | ||
Instantaneous Discharge Current | 220A/10S 320A/10S | ||
Display | LCD Display Screen/Touch Screen Display Screen | ||
Communication Interface | CAN/RS232/RS485 | ||
Cooling Method | Forcedalrcooling | ||
Transport Classification | UN38.3/MSDS/Sea/Air | ||
Battery Protection Function | Overcurrent, Overvoltage, Overcharging, Overdis charge, Shortcircuit, etc | ||
Nominal Capacity | Standard Charge/Discharge | 900.0Ah | 1000.0Ah |
Nominal Voltage | Standard Voltage | 51.2V | 51.2V |
Charge Voltage | / | 58.4V | 58.4V |
Max Continuous Charging Current | 25+3°C | 150.0A | 150.0A |
Minimum Discharge Voltage | Constant Current Terminal Voltage (Cut-off) | 42V | 42V |
Max Continuous Discharging Current | 25+3°C | 300.0A | 300.0A |
MAX Output Power Rate | 25+3°C | 46080Wh | 50668Wh |
Battery Pack Size | / | 1110*440*940mm | 1110*440*940mm |
Package Size | / | 1170*500*1110mm | 1170*500*1110mm |
Net Weight of Battery Pack | / | 362kg | 364kg |
Gross Weight of Battery Pack | / | 385kg | 387kg |
Operating Temperature | Charge | 0°C~60°C | |
Discharge | -20°C~60°C | ||
Storage Temperature | One Month | -20°C~45°C | |
Three Months | -20°C~35°C | ||
Six Months | -20°C~25°C | ||
Power Cable Terminal | / | Ring Terminal | |
16S1P
- Cell Type：LiFePo4
- Composition：16S1P
- Instantaneous Discharge Current：220A/10S 320A/10S
- Display：LCD Display Screen/Touch Screen Display Screen
- Communication Interface：CAN/RS232/RS485
- Cooling Method：Forced air cooling
- Transport Classification：UN38.3/MSDS/Sea/Air
- Battery Protection Function：Overcurrent, Overvoltage, Overcharging, Overdis charge, Shortcircuit, etc
- Nominal Capacity：300.0Ah (Standard Charge/Discharge)
- Nominal Voltage：51.2V (Standard Voltage)
- Charge Voltage：58.4V
- Max Continuous Charging Current：100.0A (25+3℃)
- Minimum Discharge Voltage：42V (Constant Current Terminal Voltage (Cut-off))
- Max Continuous Discharging Current：200.0A (25+3℃)
- MAX Output Power Rate：15360Wh (25+3℃)
- Battery Pack Size：690*300*870mm
- Package Size：690*300*870mm
- Net Weight of Battery Pack：125kg
- Gross Weight of Battery Pack：142kg
- Operating Temperature：
- Charge: 0℃~60℃
- Discharge: -20℃~60℃
- Storage Temperature：
- One Month: -20℃~45℃
- Three Months: -20℃~35℃
- Six Months: -20℃~25℃
- Power Cable Terminal：Ring Terminal
- Cell Type：LiFePo4
- Composition：16S1P
- Instantaneous Discharge Current：220A/10S 320A/10S
- Display：LCD Display Screen/Touch Screen Display Screen
- Communication Interface：CAN/RS232/RS485
- Cooling Method：Forced air cooling
- Transport Classification：UN38.3/MSDS/Sea/Air
- Battery Protection Function：Overcurrent, Overvoltage, Overcharging, Overdis charge, Shortcircuit, etc
- Nominal Capacity：314.0Ah (Standard Charge/Discharge)
- Nominal Voltage：51.2V (Standard Voltage)
- Charge Voltage：58.4V
- Max Continuous Charging Current：100.0A (25+3℃)
- Minimum Discharge Voltage：42V (Constant Current Terminal Voltage (Cut-off))
- Max Continuous Discharging Current：200.0A (25+3℃)
- MAX Output Power Rate：16076Wh (25+3℃)
- Battery Pack Size：690*300*870mm
- Package Size：758*390*1045mm
- Net Weight of Battery Pack：127kg
- Gross Weight of Battery Pack：144kg
- Operating Temperature：
- Charge: 0℃~60℃
- Discharge: -20℃~60℃
- Storage Temperature：
- One Month: -20℃~45℃
- Three Months: -20℃~35℃
- Six Months: -20℃~25℃
- Power Cable Terminal：Ring Terminal
- Cell Type：LiFePo4
- Composition：16S1P
- Instantaneous Discharge Current：220A/10S 320A/10S
- Display：LCD Display Screen/Touch Screen Display Screen
- Communication Interface：CAN/RS232/RS485
- Cooling Method：Forced air cooling
- Transport Classification：UN38.3/MSDS/Sea/Air
- Battery Protection Function：Overcurrent, Overvoltage, Overcharging, Overdis charge, Shortcircuit, etc
- Nominal Capacity：350.0Ah (Standard Charge/Discharge)
- Nominal Voltage：51.2V (Standard Voltage)
- Charge Voltage：58.4V
- Max Continuous Charging Current：100.0A (25+3℃)
- Minimum Discharge Voltage：42V (Constant Current Terminal Voltage (Cut-off))
- Max Continuous Discharging Current：200.0A (25+3℃)
- MAX Output Power Rate：17920Wh (25+3℃)
- Battery Pack Size：690*300*870mm
- Package Size：758*390*1045mm
- Net Weight of Battery Pack：127kg
- Gross Weight of Battery Pack：144kg
- Operating Temperature：
- Charge: 0℃~60℃
- Discharge: -20℃~60℃
- Storage Temperature：
- One Month: -20℃~45℃
- Three Months: -20℃~35℃
- Six Months: -20℃~25℃
- Power Cable Terminal：Ring Terminal
16S2P
- Cell Type：LiFePo4
- Composition：16S2P
- Instantaneous Discharge Current：220A/10S 320A/10S
- Display：LCD Display Screen/Touch Screen Display Screen
- Communication Interface：CAN/RS232/RS485
- Cooling Method：Forced air cooling
- Transport Classification：UN38.3/MSDS/Sea/Air
- Battery Protection Function：Overcurrent, Overvoltage, Overcharging, Overdis charge, Shortcircuit, etc
- Nominal Capacity：400.0Ah (Standard Charge/Discharge)
- Nominal Voltage：51.2V (Standard Voltage)
- Charge Voltage：58.4V
- Max Continuous Charging Current：100.0A (25+3℃)
- Minimum Discharge Voltage：42V (Constant Current Terminal Voltage (Cut-off))
- Max Continuous Discharging Current：200.0A (25+3℃)
- MAX Output Power Rate：20480Wh (25+3℃)
- Battery Pack Size：795*300*870mm
- Package Size：850*358*1045mm
- Net Weight of Battery Pack：180kg
- Gross Weight of Battery Pack：201kg
- Operating Temperature：
- Charge: 0℃~60℃
- Discharge: -20℃~60℃
- Storage Temperature：
- One Month: -20℃~45℃
- Three Months: -20℃~35℃
- Six Months: -20℃~25℃
- Power Cable Terminal：Ring Terminal
- Cell Type：LiFePo4
- Composition：16S2P
- Instantaneous Discharge Current：220A/10S 320A/10S
- Display：LCD Display Screen/Touch Screen Display Screen
- Communication Interface：CAN/RS232/RS485
- Cooling Method：Forced air cooling
- Transport Classification：UN38.3/MSDS/Sea/Air
- Battery Protection Function：Overcurrent, Overvoltage, Overcharging, Overdis charge, Shortcircuit, etc
- Nominal Capacity：460.0Ah (Standard Charge/Discharge)
- Nominal Voltage：51.2V (Standard Voltage)
- Charge Voltage：58.4V
- Max Continuous Charging Current：100.0A (25+3℃)
- Minimum Discharge Voltage：42V (Constant Current Terminal Voltage (Cut-off))
- Max Continuous Discharging Current：200.0A (25+3℃)
- MAX Output Power Rate：23552Wh (25+3℃)
- Battery Pack Size：795*300*870mm
- Package Size：850*358*1045mm
- Net Weight of Battery Pack：182kg
- Gross Weight of Battery Pack：203kg
- Operating Temperature：
- Charge: 0℃~60℃
- Discharge: -20℃~60℃
- Storage Temperature：
- One Month: -20℃~45℃
- Three Months: -20℃~35℃
- Six Months: -20℃~25℃
- Power Cable Terminal：Ring Terminal
- Cell Type：LiFePo4
- Composition：16S2P
- Instantaneous Discharge Current：220A/10S 320A/10S
- Display：LCD Display Screen/Touch Screen Display Screen
- Communication Interface：CAN/RS232/RS485
- Cooling Method：Forced air cooling
- Transport Classification：UN38.3/MSDS/Sea/Air
- Battery Protection Function：Overcurrent, Overvoltage, Overcharging, Overdis charge, Shortcircuit, etc
- Nominal Capacity：600.0Ah (Standard Charge/Discharge)
- Nominal Voltage：51.2V (Standard Voltage)
- Charge Voltage：58.4V
- Max Continuous Charging Current：150.0A (25+3℃)
- Minimum Discharge Voltage：42V (Constant Current Terminal Voltage (Cut-off))
- Max Continuous Discharging Current：300.0A (25+3℃)
- MAX Output Power Rate：30720Wh (25+3℃)
- Battery Pack Size：830*440*940mm
- Package Size：780*500*1110mm
- Net Weight of Battery Pack：235kg
- Gross Weight of Battery Pack：260kg
- Operating Temperature：
- Charge: 0℃~60℃
- Discharge: -20℃~60℃
- Storage Temperature：
- One Month: -20℃~45℃
- Three Months: -20℃~35℃
- Six Months: -20℃~25℃
- Power Cable Terminal：Ring Terminal
- Cell Type：LiFePo4
- Composition：16S2P
- Instantaneous Discharge Current：220A/10S 320A/10S
- Display：LCD Display Screen/Touch Screen Display Screen
- Communication Interface：CAN/RS232/RS485
- Cooling Method：Forced air cooling
- Transport Classification：UN38.3/MSDS/Sea/Air
- Battery Protection Function：Overcurrent, Overvoltage, Overcharging, Overdis charge, Shortcircuit, etc
- Nominal Capacity：628.0Ah (Standard Charge/Discharge)
- Nominal Voltage：51.2V (Standard Voltage)
- Charge Voltage：58.4V
- Max Continuous Charging Current：150.0A (25+3℃)
- Minimum Discharge Voltage：42V (Constant Current Terminal Voltage (Cut-off))
- Max Continuous Discharging Current：300.0A (25+3℃)
- MAX Output Power Rate：32154Wh (25+3℃)
- Battery Pack Size：830*440*940mm
- Package Size：780*500*1110mm
- Net Weight of Battery Pack：237kg
- Gross Weight of Battery Pack：262kg
- Operating Temperature：
- Charge: 0℃~60℃
- Discharge: -20℃~60℃
- Storage Temperature：
- One Month: -20℃~45℃
- Three Months: -20℃~35℃
- Six Months: -20℃~25℃
- Power Cable Terminal：Ring Terminal
16S3P
- Cell Type：LiFePo4
- Composition：16S3P
- Instantaneous Discharge Current：220A/10S 320A/10S
- Display：LCD Display Screen/Touch Screen Display Screen
- Communication Interface：CAN/RS232/RS485
- Cooling Method：Forced air cooling
- Transport Classification：UN38.3/MSDS/Sea/Air
- Battery Protection Function：Overcurrent, Overvoltage, Overcharging, Overdis charge, Shortcircuit, etc
- Nominal Capacity：900.0Ah (Standard Charge/Discharge)
- Nominal Voltage：51.2V (Standard Voltage)
- Charge Voltage：58.4V
- Max Continuous Charging Current：150.0A (25+3℃)
- Minimum Discharge Voltage：42V (Constant Current Terminal Voltage (Cut-off))
- Max Continuous Discharging Current：300.0A (25+3℃)
- MAX Output Power Rate：46080Wh (25+3℃)
- Battery Pack Size：1110*440*940mm
- Package Size：1170*500*1110mm
- Net Weight of Battery Pack：362kg
- Gross Weight of Battery Pack：385kg
- Operating Temperature：
- Charge: 0℃~60℃
- Discharge: -20℃~60℃
- Storage Temperature：
- One Month: -20℃~45℃
- Three Months: -20℃~35℃
- Six Months: -20℃~25℃
- Power Cable Terminal：Ring Terminal
- Cell Type：LiFePo4
- Composition：16S3P
- Instantaneous Discharge Current：220A/10S 320A/10S
- Display：LCD Display Screen/Touch Screen Display Screen
- Communication Interface：CAN/RS232/RS485
- Cooling Method：Forced air cooling
- Transport Classification：UN38.3/MSDS/Sea/Air
- Battery Protection Function：Overcurrent, Overvoltage, Overcharging, Overdis charge, Shortcircuit, etc
- Nominal Capacity：1000.0Ah (Standard Charge/Discharge)
- Nominal Voltage：51.2V (Standard Voltage)
- Charge Voltage：58.4V
- Max Continuous Charging Current：150.0A (25+3℃)
- Minimum Discharge Voltage：42V (Constant Current Terminal Voltage (Cut-off))
- Max Continuous Discharging Current：300.0A (25+3℃)
- MAX Output Power Rate：50668Wh (25+3℃)
- Battery Pack Size：1110*440*940mm
- Package Size：1170*500*1110mm
- Net Weight of Battery Pack：364kg
- Gross Weight of Battery Pack：387kg
- Operating Temperature：
- Charge: 0℃~60℃
- Discharge: -20℃~60℃
- Storage Temperature：
- One Month: -20℃~45℃
- Three Months: -20℃~35℃
- Six Months: -20℃~25℃
- Power Cable Terminal：Ring Terminal
ANCH48V-MC (White-Gray Model)
● Grade A EVE LiFePO₄ cells, 16S1P, excellent consistency
● Over 8000 cycles, low degradation, 10+ years service life
● 3–5 year official warranty, lifetime remote technical support
● Full BMS protection: overcurrent, overvoltage, overcharge, overdischarge, short circuit
● Efficient air cooling, stable temperature, safe operation
● Ring terminals for secure, anti-loose wiring
● Supports CAN / RS232 / RS485 communication
● Compatible with mainstream inverters, plug-and-play
● LCD touch display, real-time voltage / current / SOC monitoring
ITEM | CONDITION | PARAMETER | ||
Cell Type | LiFePo4 | |||
Composition | 16S1P | |||
Instantaneous Discharge Current | 220A/10S 320A/10S | |||
Display | LCD Display Screen/Touch Screen Display Screen | |||
Communication Interface | CAN/RS232/RS485 | |||
Cooling Method | Forcedalrcooling | |||
Transport Classification | UN38.3/MSDS/Sea/Air | |||
Battery Protection Function | Overcurrent, Overvoltage, Overcharging, Overdis charge, Shortcircuit, etc | |||
Nominal Capacity | Standard Charge/Discharge | 300.0Ah | 314.0Ah | 350.0Ah |
Nominal Voltage | Standard Voltage | 51.2V | 51.2V | 51.2V |
Charge Voltage | / | 58.4V | 58.4V | 58.4V |
Max Continuous Charging Current | 25+3°C | 100.0A | 100.0A | 100.0A |
Minimum Discharge Voltage | Constant Current Terminal Voltage (Cut-off) | 42V | 42V | 42V |
Max Continuous Discharging Current | 25+3°C | 200.0A | 200.0A | 200.0A |
MAX Output Power Rate | 25+3°C | 15360Wh | 16076Wh | 17920Wh |
Battery Pack Size | / | 480*480*640mm | 480*480*640mm | 480*480*640mm |
Package Size | / | 540*540*790mm | 540*540*790mm | 540*540*790mm |
Net Weight of Battery Pack | / | 123kg | 124kg | 124kg |
Gross Weight of Battery Pack | / | 136.3kg | 137kg | 137kg |
Operating Temperature | Charge | 0°C~60°C | ||
Discharge | -20°C~60°C | |||
Storage Temperature | One Month | -20°C~45°C | ||
Three Months | -20°C~35°C | |||
Six Months | -20°C~25°C | |||
Power Cable Terminal | / | Ring Terminal | ||
ITEM | CONDITION | PARAMETER | |||
Cell Type | LiFePo4 | ||||
Composition | 16S2P | ||||
Instantaneous Discharge Current | 220A/10S 320A/10S | ||||
Display | LCD Display Screen/Touch Screen Display Screen | ||||
Communication Interface | CAN/RS232/RS485 | ||||
Cooling Method | Forcedalrcooling | ||||
Transport Classification | UN38.3/MSDS/Sea/Air | ||||
Battery Protection Function | Overcurrent, Overvoltage, Overcharging, Overdis charge, Shortcircuit, etc | ||||
Nominal Capacity | Standard Charge/Discharge | 400.0Ah | 460.0Ah | 600.0Ah | 628.0Ah |
Nominal Voltage | Standard Voltage | 51.2V | 51.2V | 51.2V | 51.2V |
Charge Voltage | / | 58.4V | 58.4V | 58.4V | 58.4V |
Max Continuous Charging Current | 25+3°C | 100.0A | 100.0A | 150.0A | 150.0A |
Minimum Discharge Voltage | Constant Current Terminal Voltage (Cut-off) | 42V | 42V | 42V | 42V |
Max Continuous Discharging Current | 25+3°C | 200.0A | 200.0A | 300.0A | 300.0A |
MAX Output Power Rate | 25+3°C | 20480Wh | 23552Wh | 30720Wh | 32154Wh |
Battery Pack Size | / | 480*605*720mm | 480*605*720mm | 480*750*720mm | 480*750*720mm |
Package Size | / | 540*650*810mm | 540*650*810mm | 540*800*810mm | 540*800*810mm |
Net Weight of Battery Pack | / | 180kg | 180kg | 232kg | 234kg |
Gross Weight of Battery Pack | / | 195kg | 195kg | 259kg | 261kg |
Operating Temperature | Charge | 0°C~60°C | |||
Discharge | -20°C~60°C | ||||
Storage Temperature | One Month | -20°C~45°C | |||
Three Months | -20°C~35°C | ||||
Six Months | -20°C~25°C | ||||
Power Cable Terminal | / | Ring Terminal | |||
16S1P
- Cell Type：LiFePo4
- Composition：16S1P
- Instantaneous Discharge Current：220A/10S 320A/10S
- Display：LCD Display Screen/Touch Screen Display Screen
- Communication Interface：CAN/RS232/RS485
- Cooling Method：Forced air cooling
- Transport Classification：UN38.3/MSDS/Sea/Air
- Battery Protection Function：Overcurrent, Overvoltage, Overcharging, Overdis charge, Shortcircuit, etc
- Nominal Capacity：300.0Ah (Standard Charge/Discharge)
- Nominal Voltage：51.2V (Standard Voltage)
- Charge Voltage：58.4V
- Max Continuous Charging Current：100.0A (25+3℃)
- Minimum Discharge Voltage：42V (Constant Current Terminal Voltage (Cut-off))
- Max Continuous Discharging Current：200.0A (25+3℃)
- MAX Output Power Rate：15360Wh (25+3℃)
- Battery Pack Size：480*480*640mm
- Package Size：540*540*790mm
- Net Weight of Battery Pack：123kg
- Gross Weight of Battery Pack：136.3kg
- Operating Temperature：
- Charge: 0℃~60℃
- Discharge: -20℃~60℃
- Storage Temperature：
- One Month: -20℃~45℃
- Three Months: -20℃~35℃
- Six Months: -20℃~25℃
- Power Cable Terminal：Ring Terminal
- Cell Type：LiFePo4
- Composition：16S1P
- Instantaneous Discharge Current：220A/10S 320A/10S
- Display：LCD Display Screen/Touch Screen Display Screen
- Communication Interface：CAN/RS232/RS485
- Cooling Method：Forced air cooling
- Transport Classification：UN38.3/MSDS/Sea/Air
- Battery Protection Function：Overcurrent, Overvoltage, Overcharging, Overdis charge, Shortcircuit, etc
- Nominal Capacity：314.0Ah (Standard Charge/Discharge)
- Nominal Voltage：51.2V (Standard Voltage)
- Charge Voltage：58.4V
- Max Continuous Charging Current：100.0A (25+3℃)
- Minimum Discharge Voltage：42V (Constant Current Terminal Voltage (Cut-off))
- Max Continuous Discharging Current：200.0A (25+3℃)
- MAX Output Power Rate：16076Wh (25+3℃)
- Battery Pack Size：480*480*640mm
- Package Size：540*540*790mm
- Net Weight of Battery Pack：124kg
- Gross Weight of Battery Pack：137kg
- Operating Temperature：
- Charge: 0℃~60℃
- Discharge: -20℃~60℃
- Storage Temperature：
- One Month: -20℃~45℃
- Three Months: -20℃~35℃
- Six Months: -20℃~25℃
- Power Cable Terminal：Ring Terminal
- Cell Type：LiFePo4
- Composition：16S1P
- Instantaneous Discharge Current：220A/10S 320A/10S
- Display：LCD Display Screen/Touch Screen Display Screen
- Communication Interface：CAN/RS232/RS485
- Cooling Method：Forced air cooling
- Transport Classification：UN38.3/MSDS/Sea/Air
- Battery Protection Function：Overcurrent, Overvoltage, Overcharging, Overdis charge, Shortcircuit, etc
- Nominal Capacity：350.0Ah (Standard Charge/Discharge)
- Nominal Voltage：51.2V (Standard Voltage)
- Charge Voltage：58.4V
- Max Continuous Charging Current：100.0A (25+3℃)
- Minimum Discharge Voltage：42V (Constant Current Terminal Voltage (Cut-off))
- Max Continuous Discharging Current：200.0A (25+3℃)
- MAX Output Power Rate：17920Wh (25+3℃)
- Battery Pack Size：480*480*640mm
- Package Size：540*540*790mm
- Net Weight of Battery Pack：124kg
- Gross Weight of Battery Pack：137kg
- Operating Temperature：
- Charge: 0℃~60℃
- Discharge: -20℃~60℃
- Storage Temperature：
- One Month: -20℃~45℃
- Three Months: -20℃~35℃
- Six Months: -20℃~25℃
- Power Cable Terminal：Ring Terminal
16S2P
- Cell Type：LiFePo4
- Composition：16S2P
- Instantaneous Discharge Current：220A/10S 320A/10S
- Display：LCD Display Screen/Touch Screen Display Screen
- Communication Interface：CAN/RS232/RS485
- Cooling Method：Forced air cooling
- Transport Classification：UN38.3/MSDS/Sea/Air
- Battery Protection Function：Overcurrent, Overvoltage, Overcharging, Overdis charge, Shortcircuit, etc
- Nominal Capacity：400.0Ah (Standard Charge/Discharge)
- Nominal Voltage：51.2V (Standard Voltage)
- Charge Voltage：58.4V
- Max Continuous Charging Current：100.0A (25+3℃)
- Minimum Discharge Voltage：42V (Constant Current Terminal Voltage (Cut-off))
- Max Continuous Discharging Current：200.0A (25+3℃)
- MAX Output Power Rate：20480Wh (25+3℃)
- Battery Pack Size：480*605*720mm
- Package Size：540*650*810mm
- Net Weight of Battery Pack：180kg
- Gross Weight of Battery Pack：195kg
- Operating Temperature：
- Charge: 0℃~60℃
- Discharge: -20℃~60℃
- Storage Temperature：
- One Month: -20℃~45℃
- Three Months: -20℃~35℃
- Six Months: -20℃~25℃
- Power Cable Terminal：Ring Terminal
- Cell Type：LiFePo4
- Composition：16S2P
- Instantaneous Discharge Current：220A/10S 320A/10S
- Display：LCD Display Screen/Touch Screen Display Screen
- Communication Interface：CAN/RS232/RS485
- Cooling Method：Forced air cooling
- Transport Classification：UN38.3/MSDS/Sea/Air
- Battery Protection Function：Overcurrent, Overvoltage, Overcharging, Overdis charge, Shortcircuit, etc
- Nominal Capacity：460.0Ah (Standard Charge/Discharge)
- Nominal Voltage：51.2V (Standard Voltage)
- Charge Voltage：58.4V
- Max Continuous Charging Current：100.0A (25+3℃)
- Minimum Discharge Voltage：42V (Constant Current Terminal Voltage (Cut-off))
- Max Continuous Discharging Current：200.0A (25+3℃)
- MAX Output Power Rate：23552Wh (25+3℃)
- Battery Pack Size：480*605*720mm
- Package Size：540*650*810mm
- Net Weight of Battery Pack：180kg
- Gross Weight of Battery Pack：195kg
- Operating Temperature：
- Charge: 0℃~60℃
- Discharge: -20℃~60℃
- Storage Temperature：
- One Month: -20℃~45℃
- Three Months: -20℃~35℃
- Six Months: -20℃~25℃
- Power Cable Terminal：Ring Terminal
- Cell Type：LiFePo4
- Composition：16S2P
- Instantaneous Discharge Current：220A/10S 320A/10S
- Display：LCD Display Screen/Touch Screen Display Screen
- Communication Interface：CAN/RS232/RS485
- Cooling Method：Forced air cooling
- Transport Classification：UN38.3/MSDS/Sea/Air
- Battery Protection Function：Overcurrent, Overvoltage, Overcharging, Overdis charge, Shortcircuit, etc
- Nominal Capacity：600.0Ah (Standard Charge/Discharge)
- Nominal Voltage：51.2V (Standard Voltage)
- Charge Voltage：58.4V
- Max Continuous Charging Current：150.0A (25+3℃)
- Minimum Discharge Voltage：42V (Constant Current Terminal Voltage (Cut-off))
- Max Continuous Discharging Current：300.0A (25+3℃)
- MAX Output Power Rate：30720Wh (25+3℃)
- Battery Pack Size：480*750*720mm
- Package Size：540*800*810mm
- Net Weight of Battery Pack：232kg
- Gross Weight of Battery Pack：259kg
- Operating Temperature：
- Charge: 0℃~60℃
- Discharge: -20℃~60℃
- Storage Temperature：
- One Month: -20℃~45℃
- Three Months: -20℃~35℃
- Six Months: -20℃~25℃
- Power Cable Terminal：Ring Terminal
- Cell Type：LiFePo4
- Composition：16S2P
- Instantaneous Discharge Current：220A/10S 320A/10S
- Display：LCD Display Screen/Touch Screen Display Screen
- Communication Interface：CAN/RS232/RS485
- Cooling Method：Forced air cooling
- Transport Classification：UN38.3/MSDS/Sea/Air
- Battery Protection Function：Overcurrent, Overvoltage, Overcharging, Overdis charge, Shortcircuit, etc
- Nominal Capacity：628.0Ah (Standard Charge/Discharge)
- Nominal Voltage：51.2V (Standard Voltage)
- Charge Voltage：58.4V
- Max Continuous Charging Current：150.0A (25+3℃)
- Minimum Discharge Voltage：42V (Constant Current Terminal Voltage (Cut-off))
- Max Continuous Discharging Current：300.0A (25+3℃)
- MAX Output Power Rate：32154Wh (25+3℃)
- Battery Pack Size：480750720mm
- Package Size：540800810mm
- Net Weight of Battery Pack：234kg
- Gross Weight of Battery Pack：261kg
- Operating Temperature：
- Charge: 0℃~60℃
- Discharge: -20℃~60℃
Storage Temperature： - One Month: -20℃~45℃
- Three Months: -20℃~35℃
- Six Months: -20℃~25℃
- Power Cable Terminal：Ring Terminal
ANCH48V-MC (Aluminum Alloy Model)
● Lightweight aluminum alloy
● Grade A EVE LiFePO₄ cells, 16S1P, excellent consistency
● Over 8000 cycles, low degradation, 10+ years service life
● 3–5 year official warranty, lifetime remote technical support
● Full BMS protection: overcurrent, overvoltage, overcharge, overdischarge, short circuit
● Efficient air cooling, stable temperature, safe operation
● Ring terminals for secure, anti-loose wiring
● Supports CAN / RS232 / RS485 communication
● Compatible with mainstream inverters, plug-and-play
● LCD touch display, real-time voltage / current / SOC monitoring
ITEM | CONDITION | PARAMETER | |
Cell Type | LiFePo4 | ||
Composition | 16S1P | ||
Instantaneous Discharge Current | 220A/10S | ||
Display | LCD Display Screen/Touch Screen Display Screen | ||
Communication Interface | CAN/RS232/RS485 | ||
Cooling Method | Forcedalrcooling | ||
Transport Classification | UN38.3/MSDS/Sea/Air | ||
Battery Protection Function | Overcurrent, Overvoltage, Overcharging, Overdis charge, Shortcircuit, etc | ||
Nominal Capacity | Standard Charge/Discharge | 300.0Ah | 314.0Ah |
Nominal Voltage | Standard Voltage | 51.2V | 51.2V |
Charge Voltage | / | 58.4V | 58.4V |
Max Continuous Charging Current | 25+3°C | 100.0A | 100.0A |
Minimum Discharge Voltage | Constant Current Terminal Voltage (Cut-off) | 42V | 42V |
Max Continuous Discharging Current | 25+3°C | 200.0A | 200.0A |
MAX Output Power Rate | 25+3°C | 15360Wh | 16076.8Wh |
Battery Pack Size | / | 550*255.5*847mm | 550*255.5*847mm |
Package Size | / | 670*890*425mm | 670*890*425mm |
Net Weight of Battery Pack | / | 125kg | 127kg |
Gross Weight of Battery Pack | / | 132kg | 134kg |
Operating Temperature | Charge | 0°C~60°C | |
Discharge | -20°C~60°C | ||
Storage Temperature | One Month | -20°C~45°C | |
Three Months | -20°C~35°C | ||
Six Months | -20°C~25°C | ||
Power Cable Terminal | / | Ring Terminal | |
- Cell Type：LiFePo4
- Composition：16S1P
- Instantaneous Discharge Current：220A/10S
- Display：LCD Display Screen/Touch Screen Display Screen
- Communication Interface：CAN/RS232/RS485
- Cooling Method：Forced air cooling
- Transport Classification：UN38.3/MSDS/Sea/Air
- Battery Protection Function：Overcurrent, Overvoltage, Overcharging, Overdis charge, Shortcircuit, etc
- Nominal Capacity：300.0Ah (Standard Charge/Discharge)
- Nominal Voltage：51.2V (Standard Voltage)
- Charge Voltage：58.4V
- Max Continuous Charging Current：100.0A (25+3℃)
- Minimum Discharge Voltage：42V (Constant Current Terminal Voltage (Cut-off))
- Max Continuous Discharging Current：200.0A (25+3℃)
- MAX Output Power Rate：15360Wh (25+3℃)
- Battery Pack Size：550*255.5*847mm
- Package Size：670*890*425mm
- Net Weight of Battery Pack：125kg
- Gross Weight of Battery Pack：132kg
- Operating Temperature：
- Charge: 0℃~60℃
- Discharge: -20℃~60℃
- Storage Temperature：
- One Month: -20℃~45℃
- Three Months: -20℃~35℃
- Six Months: -20℃~25℃
- Power Cable Terminal：Ring Terminal
- Cell Type：LiFePo4
- Composition：16S1P
- Instantaneous Discharge Current：220A/10S
- Display：LCD Display Screen/Touch Screen Display Screen
- Communication Interface：CAN/RS232/RS485
- Cooling Method：Forced air cooling
- Transport Classification：UN38.3/MSDS/Sea/Air
- Battery Protection Function：Overcurrent, Overvoltage, Overcharging, Overdis charge, Shortcircuit, etc
- Nominal Capacity：314.0Ah (Standard Charge/Discharge)
- Nominal Voltage：51.2V (Standard Voltage)
- Charge Voltage：58.4V
- Max Continuous Charging Current：100.0A (25+3℃)
- Minimum Discharge Voltage：42V (Constant Current Terminal Voltage (Cut-off))
- Max Continuous Discharging Current：200.0A (25+3℃)
- MAX Output Power Rate：16076.8Wh (25+3℃)
- Battery Pack Size：550*255.5*847mm
- Package Size：670*890*425mm
- Net Weight of Battery Pack：127kg
- Gross Weight of Battery Pack：134kg
- Operating Temperature：
- Charge: 0℃~60℃
- Discharge: -20℃~60℃
- Storage Temperature：
- One Month: -20℃~45℃
- Three Months: -20℃~35℃
- Six Months: -20℃~25℃
- Power Cable Terminal：Ring Terminal
CONTACT US
If you would like to inquire about product pricing, place an order, or have any other questions, please feel free to fill out the form or contact us through the following methods.
Keep in touch
General process
Step 01
Inquiry & Requirement Confirmation
Step 02
Quotation & Payment
Step 03
Production & Quality Control
Step 04
Logistics & Tracking
Step 05
Customs Clearance Assistance
Step 06
